Specification
Types

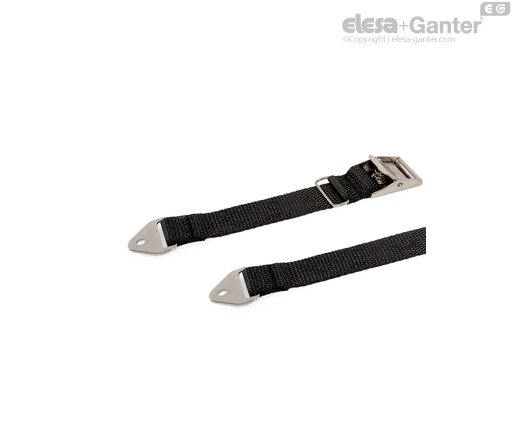

- Type AA: 2 flat screw-on plates

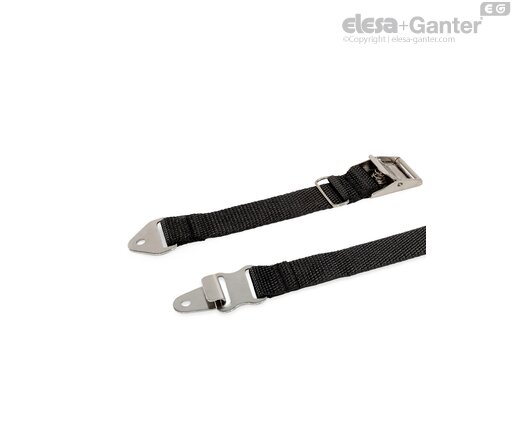

- Type AD: Flat screw-on plate, suspension plate and screw-on hook
- Type BB: 2 45° screw-on plates

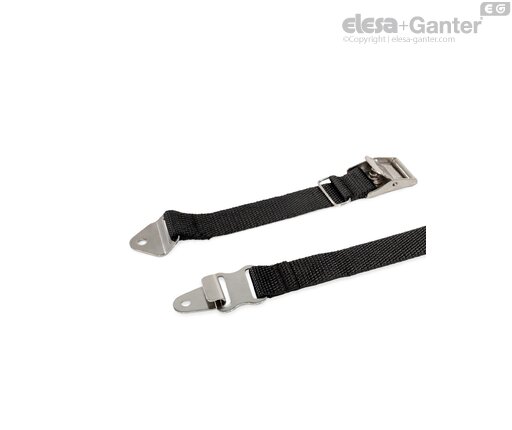

- Type BD: 45° screw-on plate, suspension plate and screw-on hook
Buckle / Fasteners
Stainless steel AISI 304 NI
Strap
Plastic, polyester
Information
Tension straps GN 1111 are used for securing boxes or crates in holders or fastening containers onto carriers. They consist of two straps and can be screwed or riveted in place with the fittings securely sewn onto the ends.
The straps are connected by threading them into the buckle. The buckle locks the belt in the direction of pull; to release it, the spring-loaded locking pawl must be pressed to raise it up.
Types AD and BD can be quickly and easily attached or detached thanks to the additional hook latch. With these types, the loose strap end is folded over and stitched to prevent the lashing strap from unintentionally working its way out.
Tension straps GN 1111 may not be used for lifting loads or for lashing.
