Main specifications
Material
Glass-fibre reinforced polyamide based (PA) technopolymer, black colour, matte finish.
Standard execution
Boss H7 reamed through hole.
- VDSC-GXX+I: with revolving handle I.621+x in polyamide based (PA) technopolymer, black colour, matte finish.
Black-oxide steel boss.
- VDSC-GXX-SST+I: with revolving handle I.621+x-SST in polyamide based (PA) technopolymer, black colour, matte finish.
AISI 303 stainless steel boss.

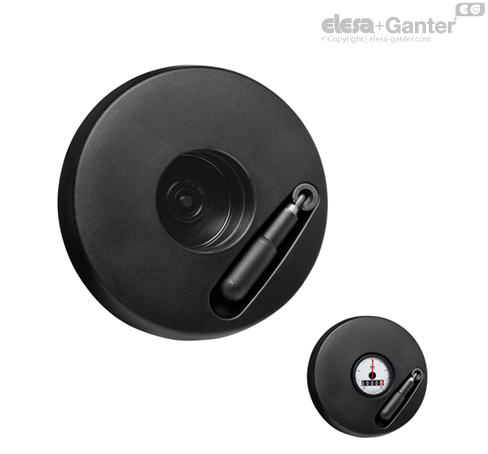

- VDSC-GXX+IR: with fold-away handle IR.620 in polyamide based (PA) technopolymer, black colour, matte finish.
Black-oxide steel boss.
- VDSC-GXX-SST+IR: with fold-away handle IR.620-SST in polyamide based (PA) technopolymer, black colour, matte finish.
AISI 303 stainless steel boss.
General information
Indicator choice (to be ordered separately)
VDSC-XX solid handwheels can be used with analogue and digital-analogue gravity indicators.
To choose the indicator see the table below for possible assembly with indicators.
See also Assembly instructions for gravity indicators type G.
Accessories on request
Accessories on request
Cover CP-XXfor fitting instead of the indicator.
Other executions
Special executions on request
Handwheels with cross holes according to GN 110.
