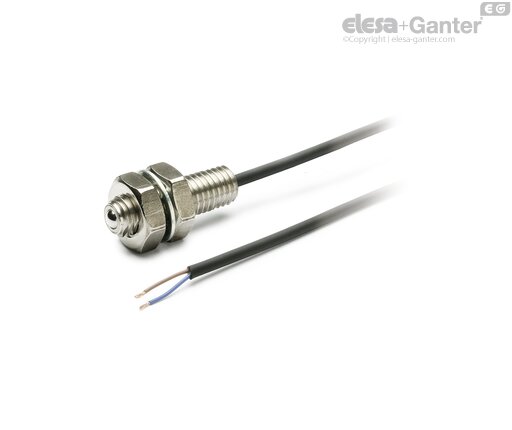

GN 615.7-S Spring Plungers Normally open

Types

• Type S: Normally open
• Type O: Normally closed

Screw

Steel, nickel plated

Ball

Steel, hardened

Hex nuts

Steel, nickel plated

Toothed washer

Steel, zinc plated

Limit switch

• Voltage: 5 ... 24 V DC
• Switching load recom.: 5 ... 10 mA
• Switching load max.: 20 mA DC
• Life expectancy: 3 Mio. millions operations
• Operating temperature -10° C ... +80° C

Supply cable

Polyvinyl chloride (PVC)

• Ø 3, 2 phase, ≈ 2 meters long
• Max. tensile load 20 N
• Gray for type S
• Black for type O

Protection class IP 40
