Main specifications
Threaded body
Special glass-fibre reinforced polyamide based (PA) SUPER-technopolymer, blue colour RAL 5005.
Plunger
AISI 303 stainless steel.
Suggested tolerance for matching hole = H7.
Knob
High-resilience polyamide based (PA) technopolymer, RAL 5005 blue colour, matte finish.
Produced from FDA compliant raw material (FDA CFR.21 and EU 10/2011).
Spring
AISI 302 stainless steel.
Locking nut
NTT-VD: Special glass-fibre reinforced polyamide based (PA) SUPER-technopolymer, blue colour RAL 5005.
Available also as accessory sold separately (see table).
Standard executions
- PMT.100-SST-A-VD: without locking nut.

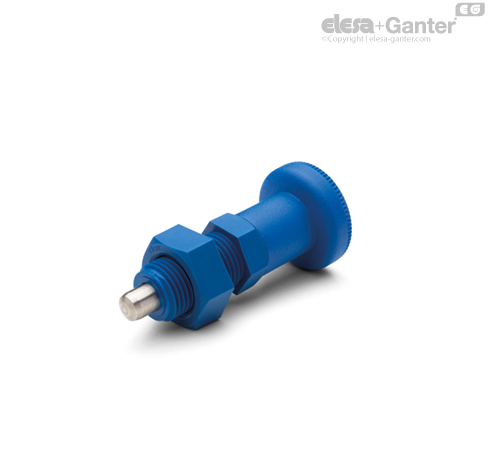

- PMT.100-SST-AK-VD: with locking nut, supplied not assembled.
Instructions of use
Assembly instructions
Make sure that no machining residues are left on the threaded hole for the assembly indexing plunger (see fig. 1). Do not make any chamfering in the hole (see fig. 2).
SUPER-technopolymer product based on ELESA technology, dimensions according to GN 617 standards as agreed with Otto Ganter GmbH Co. KG.
Other executions
Another standard execution
PMT.101-SST-VD: indexing plungers with rest position.
Accessories
Accessories on request
NTT-VD: Special glass-fibre reinforced polyamide based (PA) SUPER-technopolymer, blue colour RAL 5005.
| Code | Description |
| 191083 | NTT-M10x1-VD |
| 191085 | NTT-M12x1,5-VD |
| 191087 | NTT-M16x1,5-VD |
| 191089 | NTT-M20x1,5-VD |
